Wire-cut EDM for Mould Manufacturing
Wire-cut machining for selected conductive mould components.
Mould Manufacturing Equipment and Capabilities
HA NOI MOULD TECHNOLOGY COMPANY LIMITED uses CNC machining centers, EDM, wire-cut EDM, a coordinate measuring machine (CMM) and injection moulding machines to support mould component machining, assembly, mould trials and project-based moulding in Vietnam.
Equipment matched to each manufacturing step
- CNC machining: cores, cavities, inserts, electrodes, mould plates and mechanism components.
- EDM: deep cavities, narrow slots and areas that cutting tools cannot reach directly.
- Wire-cut EDM: programmed profiles, holes and slots in conductive components.
- Coordinate measuring machine (CMM): dimensional and geometric checks defined by drawings and the agreed measurement plan.
- Injection moulding machines: mould trials, sample evaluation and production within the agreed project scope.
Capability review based on project data
Machine names alone do not determine feasibility. HANOI MOULD reviews part size, material, geometry, tolerance, surface requirements, quantity and inspection scope before confirming a manufacturing or trial plan.
Data required for a capability review
- Editable 3D data and 2D drawings with tolerances, when available.
- Mould steel or plastic resin requirements.
- Surface, assembly and functional requirements.
- Expected quantity, cavity count and delivery plan.
- Required inspection records and acceptance criteria.
View the mould manufacturing process or send your project data for review.
Equipment Across Mould Manufacturing, Inspection and Trials
A project may use several of the equipment groups below. The applicable machining, inspection and moulding route is confirmed after review of the part data, mould concept, material and acceptance requirements.

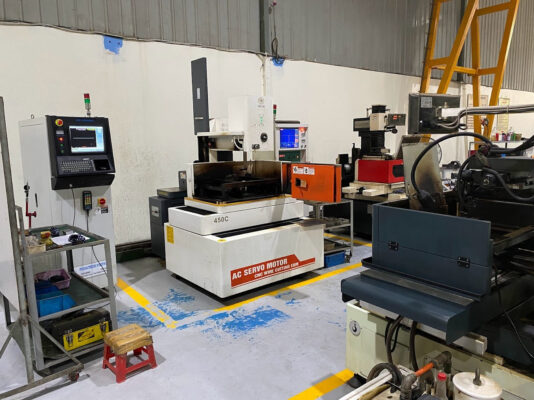

Wire-cut EDM Machine
Programmed profiles, holes and slots in conductive components.

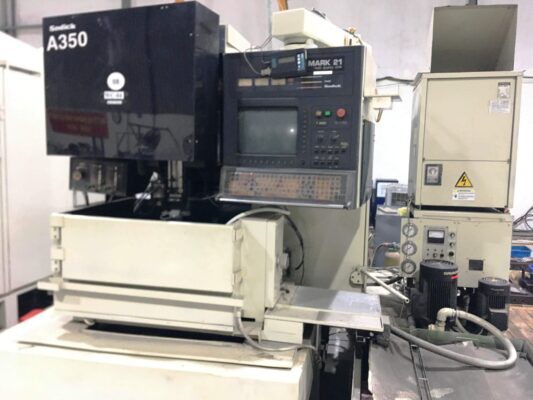

Wire-cut EDM Machine No. 02
Wire-cut machining planned according to the component geometry and material.

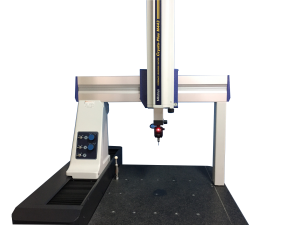

Coordinate Measuring Machine (CMM)
Dimensional and geometric checks based on the agreed measurement plan.
Injection Moulding for Project Production
Project-based moulding within an agreed production and inspection scope.
Injection Moulding Machine for Mould Trials
Mould trials and sample evaluation within the agreed project scope.
CNC EDM Machine
EDM for deep cavities, narrow slots and areas not directly reached by cutting tools.
High-speed CNC Milling for Mould Components
CNC machining for selected cores, cavities, inserts, electrodes and mould components.
CNC Machining Centre
Machining of mould plates and components according to project data.
CNC Milling Centre
CNC milling within the manufacturing route defined for each mould.
High-speed Precision CNC Milling Centre
High-speed machining for selected precision mould components.
High-speed CNC Milling for Mould Surfaces
High-speed CNC milling for selected mould surfaces and components.
Technical review resources
Review product data, acceptance criteria and project scope before confirming the quality plan or equipment route.
